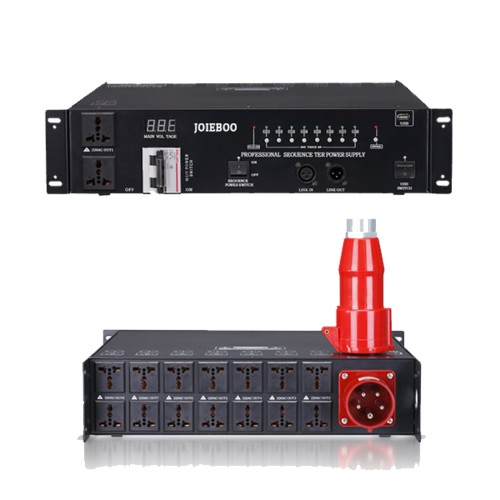

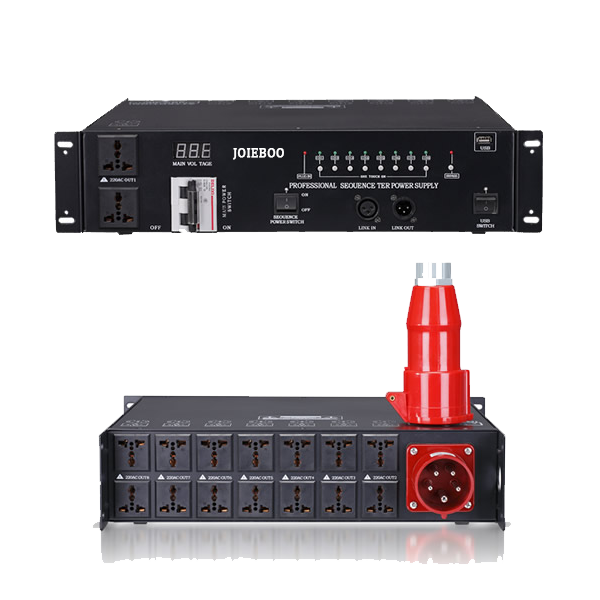

Product parameter model:XC3080 factory are all after aging for 48 hours |
*.適用范圍：娛樂工程系列、演出工程系列、會議工程系列(可帶6~7臺1000W~1500W功放)。可選配USB線連接電腦控制功能。 |
Scope of application: entertainment project series, performance engineering series, Engineering Conference Series (with 6~7 1000W~1500W power amplifier). The optional USB lines connected to the computer control function. |
最大輸入電流 max supply current | 80A |
單路最大輸出電流 Single maximum output current | 30A |
工作電壓 Working voltage | 220V/50-60Hz |
每一路功率 Each power | 可達3000W，（演出工程和會議工程系列專用設備） Every road leading directly to the 3000W（Perform engineering and engineering conference series of special equipment） |
輸入與輸出電壓 The input and output voltage | 380V輸入=220V輸出 （下訂單前請說明，可選配電壓：110V輸入=110V輸出，380V輸入=220V輸出） 380V input =220V output (Please indicate the order，optional voltage: 110V input =110V output, 380V input =220V output) |
輸出電源插座 Output power supply socket | 萬用插座，符合歐美標準。1按鈕控制2路，上下兩路為1組，16個受控萬用插，（面板前面2路可做直通，下單時請說明） Universal socket, in line with European standards. The 1 button control 2 Road, upper and lower two into 1 groups, 16 controlled universal socket, (front panel 2 road to do straight place an order, please explain) |
插座材質 The socket material | 每個插座材質磷銅，均通過檢驗才安裝 Each of the socket material copper, each socket all through the inspection before installation |
每一路開關間隔時間 Each switch with interval time | 1秒 ，每2通道帶開關指示燈1個,后端配置一個保險開關按鈕（BYPASS）旁路功能 Each switching interval is one second, each switch with indicating lamp, a switch button in the back-end (BYPASS) |
繼電器Relay | 寧波松樂牌(原廠正品) Ningbo Songle brand (the original authentic) |
電路板線路 The power supply circuit board line | 采用60%高純度錫，高端分流技術,經強化加粗處理 The 60% high purity tin, high-end streaming technology, through enhancing the bold treatment |
變壓器 Relay | A&C原廠正品 A&C original authentic |
內置電源線 The built-in cable | 內置線材每路2.5平方，連接外線內置10平方線材,（本廠不提供外接電纜線，按實際工程需求自配） The built-in cable to the relay at each of 2.5 square meters, 10 square meters built connecting the output cable (the factory does not provide external cable, according to the actual engineering requirements with) |
電壓顯示表 Voltage meter | 二極管 數字顯示電壓表 LED digital display voltmeter |
機箱高度 Chassis height | 2U （符合機柜按照標準） 2U (with the case in accordance with the standard) |
開關 Switch button | 德力西牌 80A 空氣開關 Delixi brand 80A air switch |
照明配置 Lighting port configuration | 配置一個USB照明燈接口 Configure a USB lamp interface |
受控功能 Control function | 有,(每通道可以單獨受控)其中每一路按鈕控制上下2通道，16個受控萬用插 Yes, (each button can be controlled separately), 2 channel button for each control, a total of 16 wildcard socket |
聯機支持 Connect the machine support button | 有,(可支持8臺設備同時聯機使用)聯機端口：卡隆端口 Yes, (can support 8 devices at the same time connection using the connection device port):Caron port |
電壓配置
Voltage configuration | 5芯公插，三相五線制，380V進，220V出 5 core male plug, three-phase five wire system, input output: 380V,: 220V |
濾波器Current noise filter | 進口 KMX 專業濾波器。 Import KMX professional filter |
